Steel wire ropes of double construction bright and galvanized
DIN EN 12385-2, 12385-4

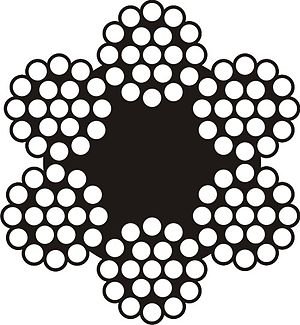

Construction: 6x19
Diameter: 4.00 - 40.00 mm
Tensile strength of wire: 1570 - 1960 N/mm2
| FIBER CORE | STEEL CORE (WRC) | |||
| Nominal Diameter [mm] | Approx. Weight [Kg/m] | Minimum breaking load(kN) [1770 N/mm2] | Approx. Weight [Kg/m] | Minimum breaking load (KN) [1770 N/mm2] |
|---|---|---|---|---|
| 4.00 | 0.0554 | 8.70 | 0.061 | 9.40 |
| 5.00 | 0.0865 | 13.60 | 0.095 | 14.70 |
| 6.00 | 0.1250 | 19.60 | 0.138 | 21.20 |
| 8.00 | 0.2210 | 34.80 | 0.243 | 37.60 |
| 9.00 | 0.2800 | 44.10 | 0.308 | 47.60 |
| 10.00 | 0.3460 | 54.50 | 0.381 | 58.80 |
| 11.00 | 0.4190 | 65.80 | 0.461 | 71.10 |
| 12.00 | 0.4980 | 78.30 | 0.548 | 84.60 |
| 13.00 | 0.5850 | 91.90 | 0.643 | 99.30 |
| 14.00 | 0.6780 | 107.00 | 0.746 | 115.00 |
| 16.00 | 0.8860 | 139.00 | 0.974 | 150.00 |
| 18.00 | 1.1200 | 176.00 | 1.230 | 190.00 |
| 20.00 | 1.3800 | 218.00 | 1.520 | 235.00 |
| 22.00 | 1.6700 | 263.00 | 1.840 | 284.00 |
| 24.00 | 1.9900 | 313.00 | 2.190 | 338.00 |
| 26.00 | 2.3400 | 368.00 | 2.570 | 397.00 |
| 28.00 | 2.7100 | 426.00 | 2.980 | 461.00 |
| 32.00 | 3.5400 | 557.00 | 3.900 | 602.00 |
| 36.00 | 4.4800 | 705.00 | 4.930 | 761.00 |
| 40.00 | 5.5400 | 870.00 | 6.090 | 940.00 |
Application area: lifting installations for industry (machines, extractions, shipyards, civil and industrial constructions)
